Hot Sale Sma Female To Ts9 Ra Assembly Pigtail Rf Coaxial Cable Male

FOB Reference Price:Get Latest Price
$0.20 - $0.60 / Pieces | 1 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 1000 1001 - 5000 5001 - 100000 >100000
Est. Time(days) 7 15 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
BJDZ
Model Number:
SMA-KWE-TS9-JW-316-042
Conductor Material:
Copper
Insulation Material:
PE
Jacket:
PVC
Number of Conductors:
1
Application:
Telecommunication
Plating:
Nickel/gold
Insulator:
Teflon/Plastic
Material:
Copper
Impedance:
50Ω, 75Ω
Temperature Range:
-55~+155°C (PE Cable -40~+85°C)
Frequency Range:
DC-4GHz
Withstanding Voltage:
1500V r.m.s at sea level
Working Voltage:
500Vr.m.s at sea level
Durability:
≥ 500(cycles)
Customize:
Supported
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week cable assembly pigtail sma female RA to TS9 male
Packaging & Delivery
Packaging Details
Hot Sale Sma Female To Ts9 Ra Assembly Pigtail Rf Coaxial Cable Male
1 piece in one plastic bag
2 100 pieces in one grey paper carton
3 Clear Plastic Bag/ Standard Export Carton
4 According to customers requirement
Port
Shanghai
Lead Time :
Quantity(Pieces) 1 - 1000 1001 - 5000 5001 - 100000 >100000
Est. Time(days) 7 15 30 To be negotiated
Product Description

Hot Sale Sma Female To Ts9 Ra Assembly Pigtail Rf Coaxial Cable Male


We have been making RF connectors since 1991.


Our custom RF cable connectors are manufacture direct and skillful manufactured.


RF cable connectors in 50 ohms can be the following types such as EIA, 7/16 DIN, BNC, FME, MCX, MMCX, N, QMA, SMA, SMB, SMC, SMP, SSMB, TNC, UHF, U.FL and 75 ohms cable assemblies can be made with the following 75 ohms connectors such as BNC, F, N, SMB, SMC, TNC and mini SMB .

RF cable connectors can be connected on the coaxial cable includes: RG141/RG142/RG174/ RG178/RG179/RG180/ RG187/RG196/RG213/RG214/RG218/RG219/ RG223/RG303/RG316/RG316-DS/RG393/RG400/RG401/RG402/RG405/RG58U/1/2 / 7/8 / LMR195/ LMR240/LMR400,ect

RF cable connectors can be produced to cable assemblies with many different cable types and custom lengths depending on your needs and applications.

If you require a special RF cable assembly configuration not found here, you can create your own RF cable assembly configuration by calling our sales department.


sma female to ts9 ra pigtail cable

Detailed Images

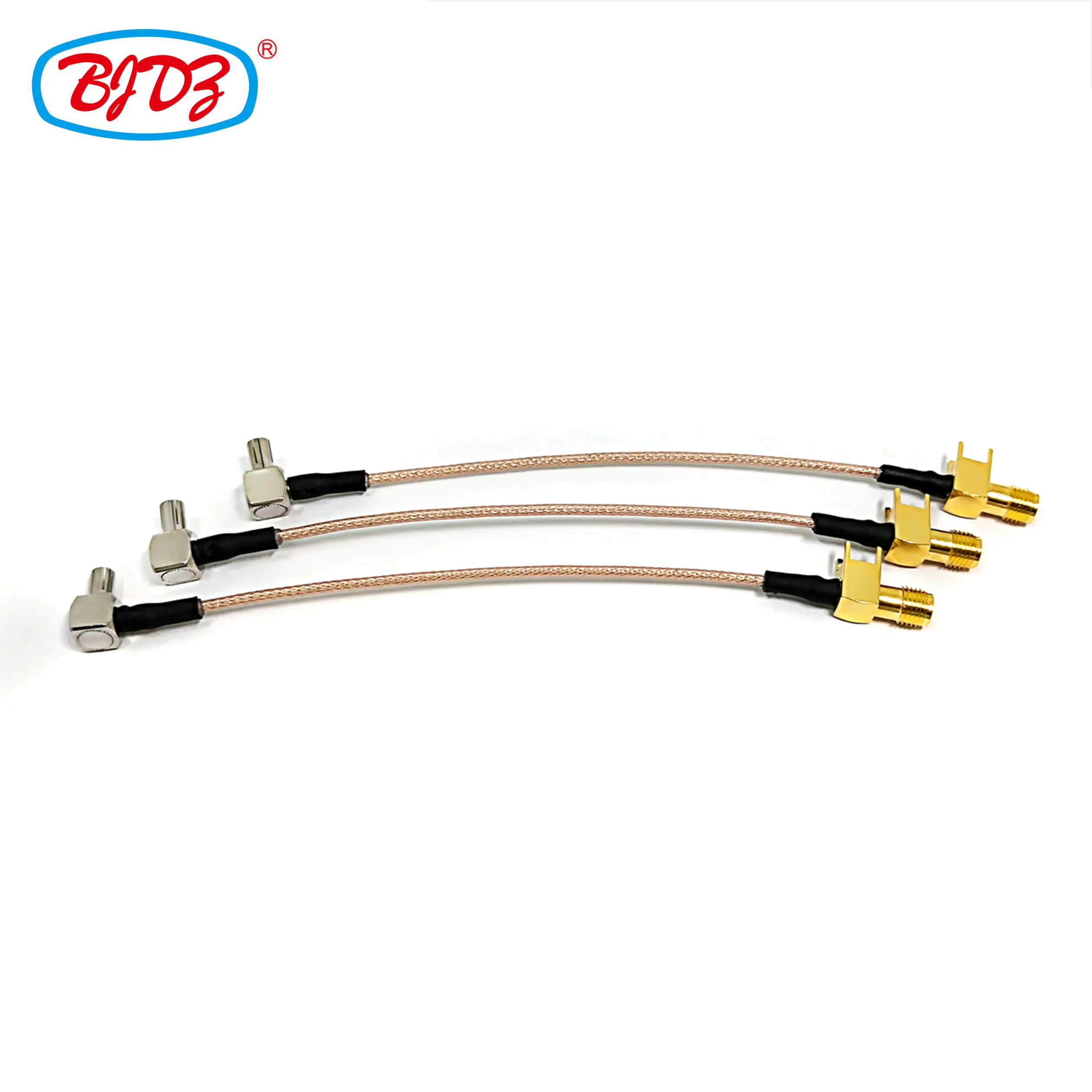

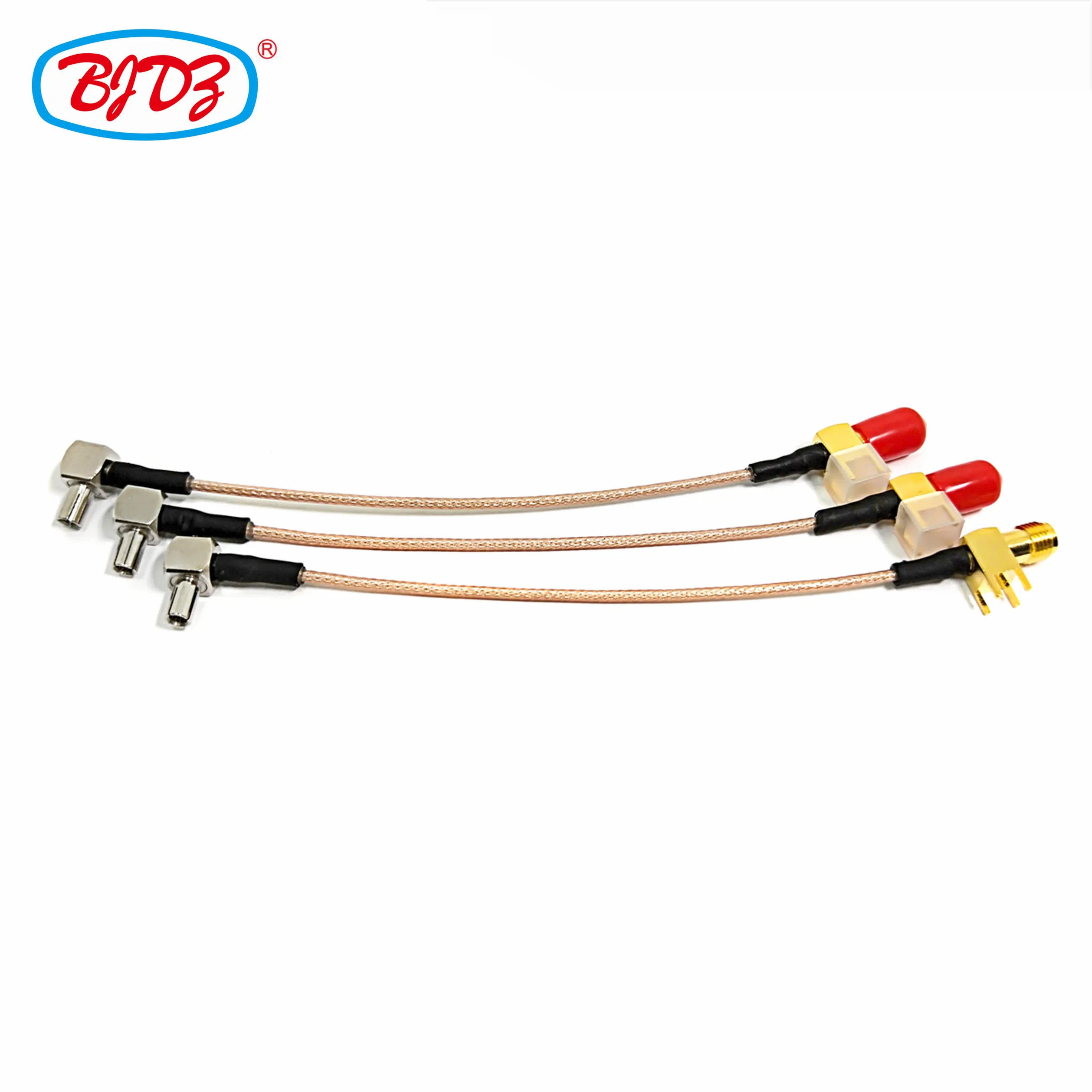

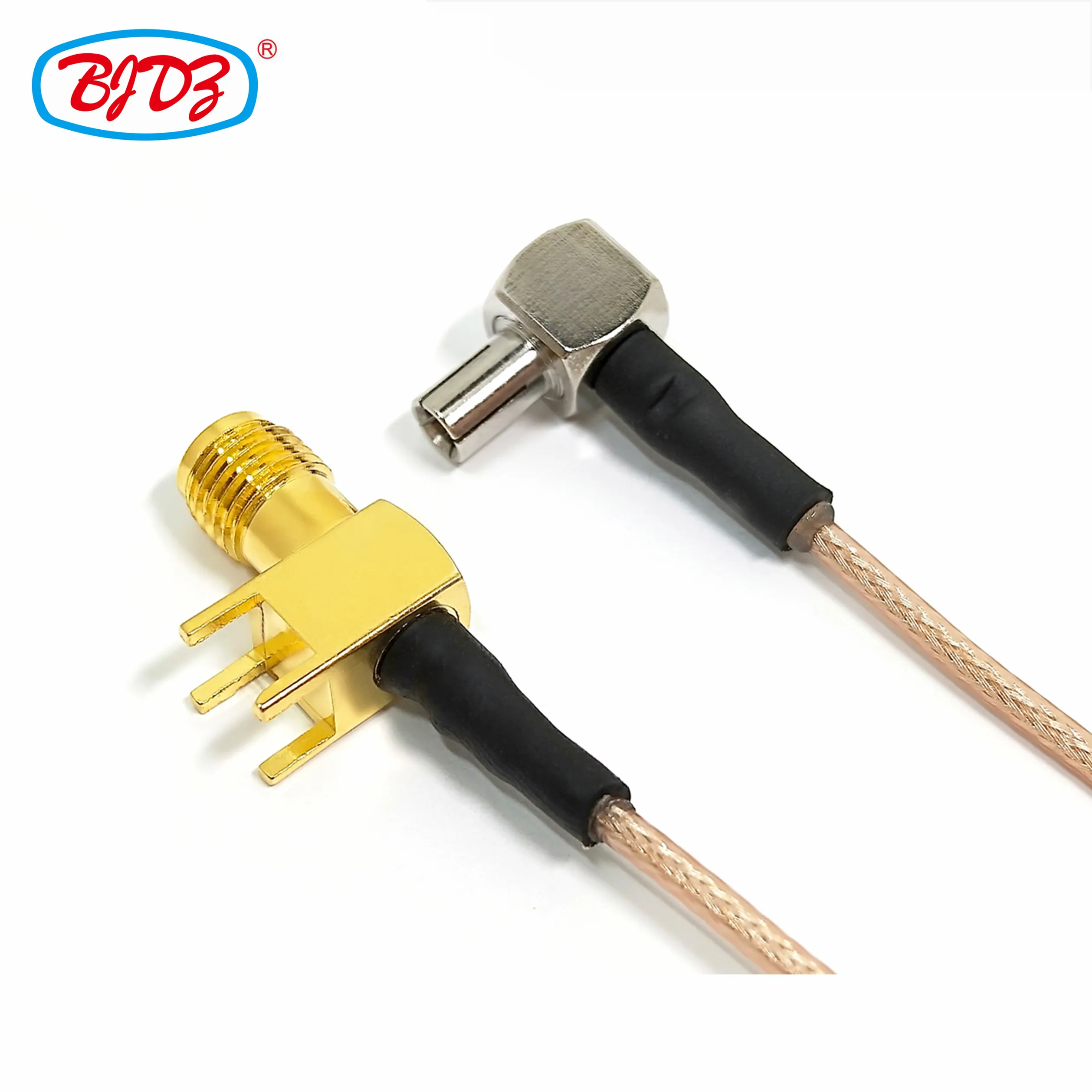

Hot Sale Sma Female To Ts9 Ra Assembly Pigtail Rf Coaxial Cable Male
SConnector 1

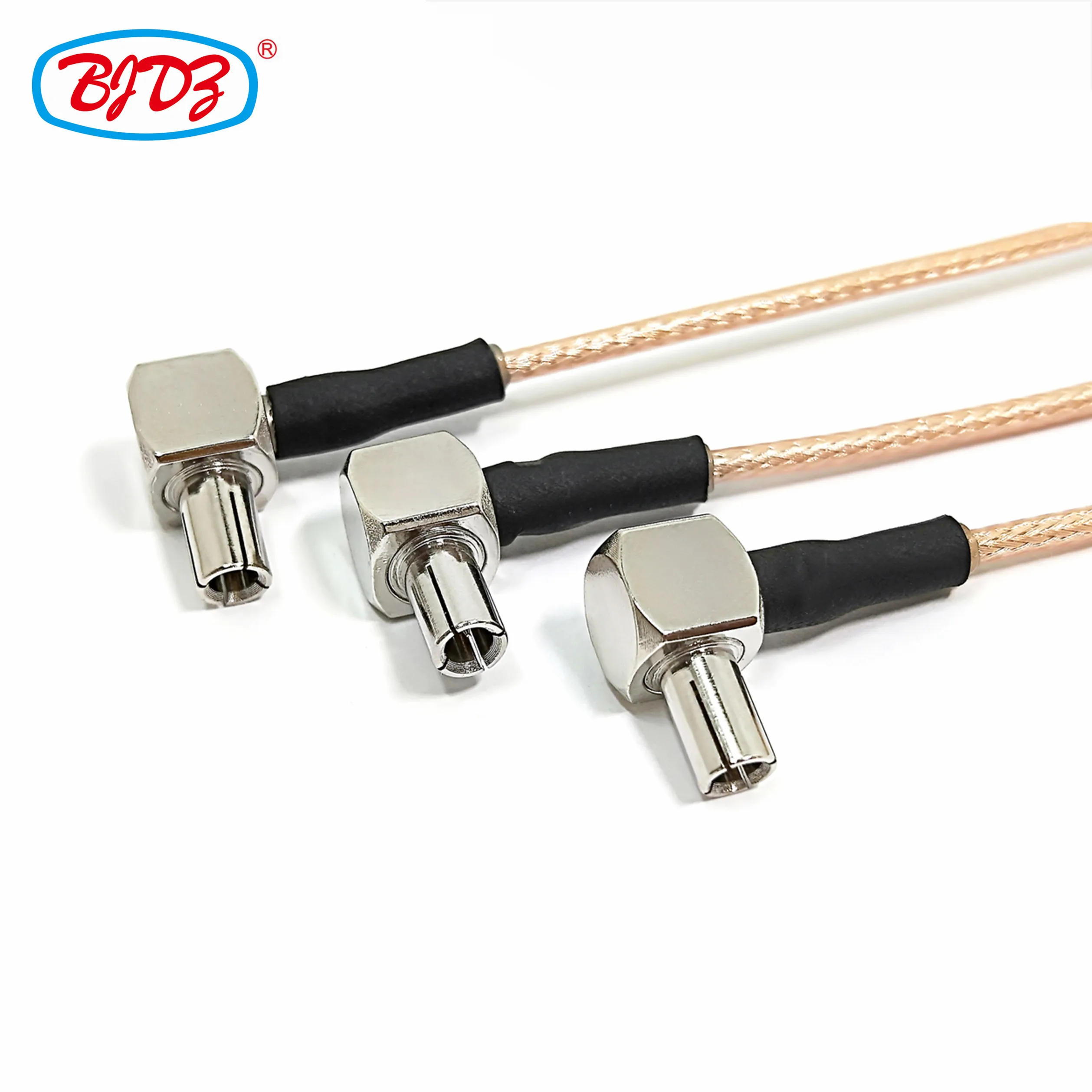

TS9 Male Right Angle Connector
Connector 2

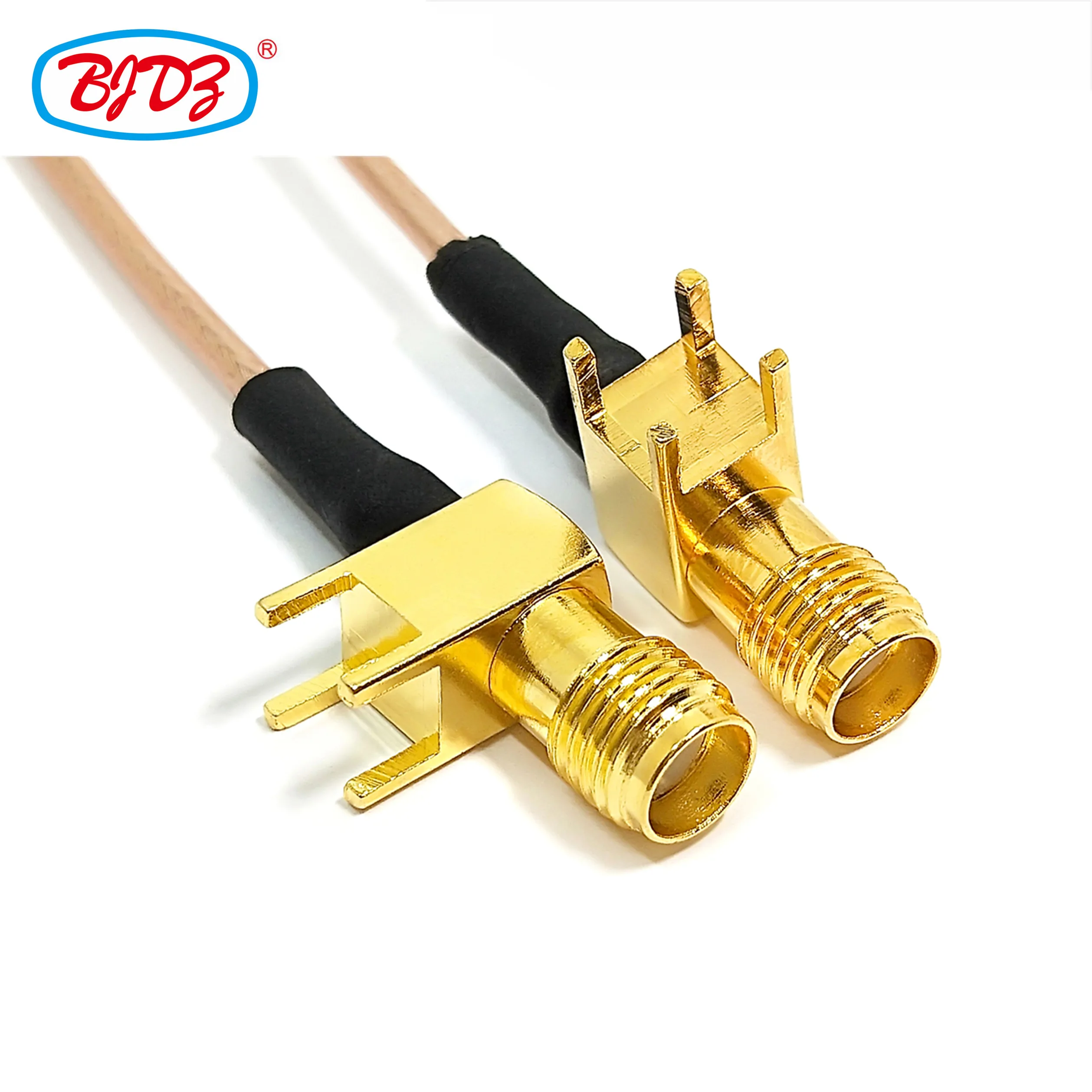

SMA Female PCB Right Angle Connector
Cable type
RG316
Cable length
Can be customized
Packing
Neutral packing or customized
If you need customized service please tell me the connectors and cable you need.We support customization.
cable assembly pigtail sma female RA to TS9 male
TS9
SMA
Temperature Range
-55~+155°C (PE Cable -40~+85°C)
-55~+155°C (PE Cable -40~+85°C)
Impedance
50Ω
50Ω
Frequency Range
DC-6GHz
DC-12.4GHz(semi-rigid cable DC-18 GHz)
Withstanding Voltage
500V r.m.s at sea level
≤ 0.15dB/6GHz
Working Voltage
170V r.m.s at sea level
1000V r.m.s at sea level
Insulation Resistance
≥ 1000 MΩ
335Vr.m.s at sea level
Durability
≥ 500(cycles)
≥ 500(cycles)
Contact resistance:
CenterContact ≤ 5mΩ
Outer Contact ≤ 2.5mΩ
CenterContact ≤ 3mΩ
Outer Contact ≤ 2.5mΩ
Voltage Standing Wave Ratio:
Straight    ≤ 1.20/1GHz
Right angle   ≤ 1.43/1GHz
Straight   flex cable ≤ 1.10+0.02f
                Semi-rigid cable ≤ 1.07+0.018f
Right angle   flex cable ≤ 1.20+0.03f
                  Semi-rigid cable ≤ 1.17+0.02f
rf coaxial cable assembly TS9 male to sma female
